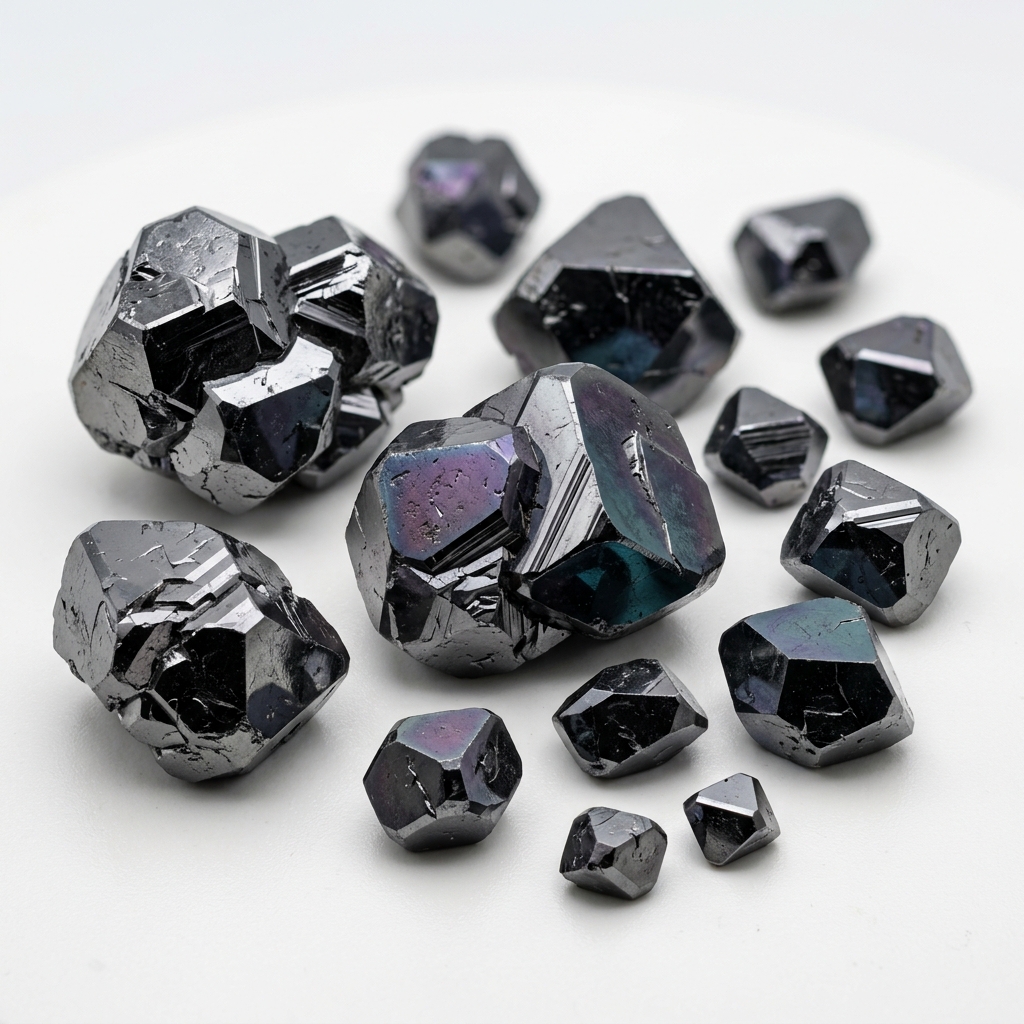

Advanced Semiconductor Crystal Growth Platform

Crystals Growing SIA is a Latvian materials company running the full crystal supply chain under one roof: precursor synthesis, ultra-high purification, single-crystal growth on our proprietary LTG Czochralski platform, and precision processing into wafers, substrates, and shaped optical elements.

We focus on II-VI compound semiconductors such as CdTe, CdZnTe, and CdHgTe, a class of materials where only a handful of independent producers worldwide can deliver large, low-defect boules at production cadence. Every batch is grown to the customer's specification, not pulled from a catalogue.

  • Proprietary synthesis and ultra-high purification of II-VI precursors
  • Large-diameter single-crystal growth with record-low dislocation density
  • CdTe boules grown to 70 mm diameter, a production milestone for the industry
  • Quantum-dot development for quantum computing and communication networks
  • AI-driven reactor automation for reproducible growth of complex compositions

Our reactors adapt through software, not hardware. The same physical platform that grows CdTe today can grow a mixed tungstate tomorrow, self-learning control tunes the thermal profile and pulling rate to each new composition, so we are not rebuilding a furnace every time a project changes.

Crystals Growing SIA engineering team
98%
Material Yield
vs 75–85% industry typical
6
Core Compounds
One platform, one team
70mm
Crystal Diameter
Production milestone
AI
Reactor Control
Self-learning thermal loop

Applications

X-ray detectors · IR lasers (6–12 μm) · Quantum tech · Radiation monitoring

Industries

Medical imaging · Security · Infrared photonics · Quantum computing

Quality

High purity · Low dislocation · Scalable production · Independently validated

Technology

Proprietary LTG method · Self-learning AI software · Adaptable to new compositions

From Raw Material to Precision Crystal

Every crystal we ship is traceable to its elemental feedstock. Running synthesis, growth, and finishing in-house keeps stoichiometry and contamination under one team's control, from the precursor batch to the polished wafer.

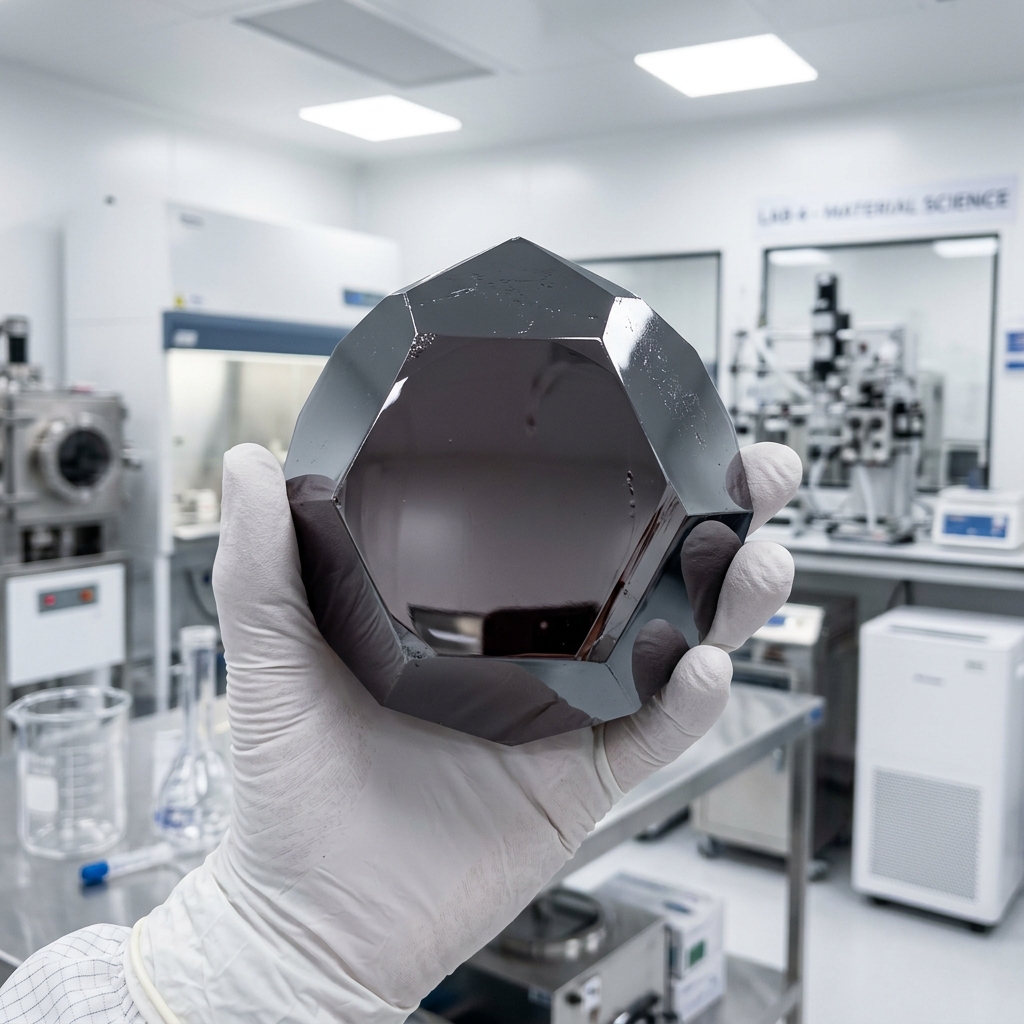

CdTe semiconductor crystal boule held in gloved hands
01 / 03

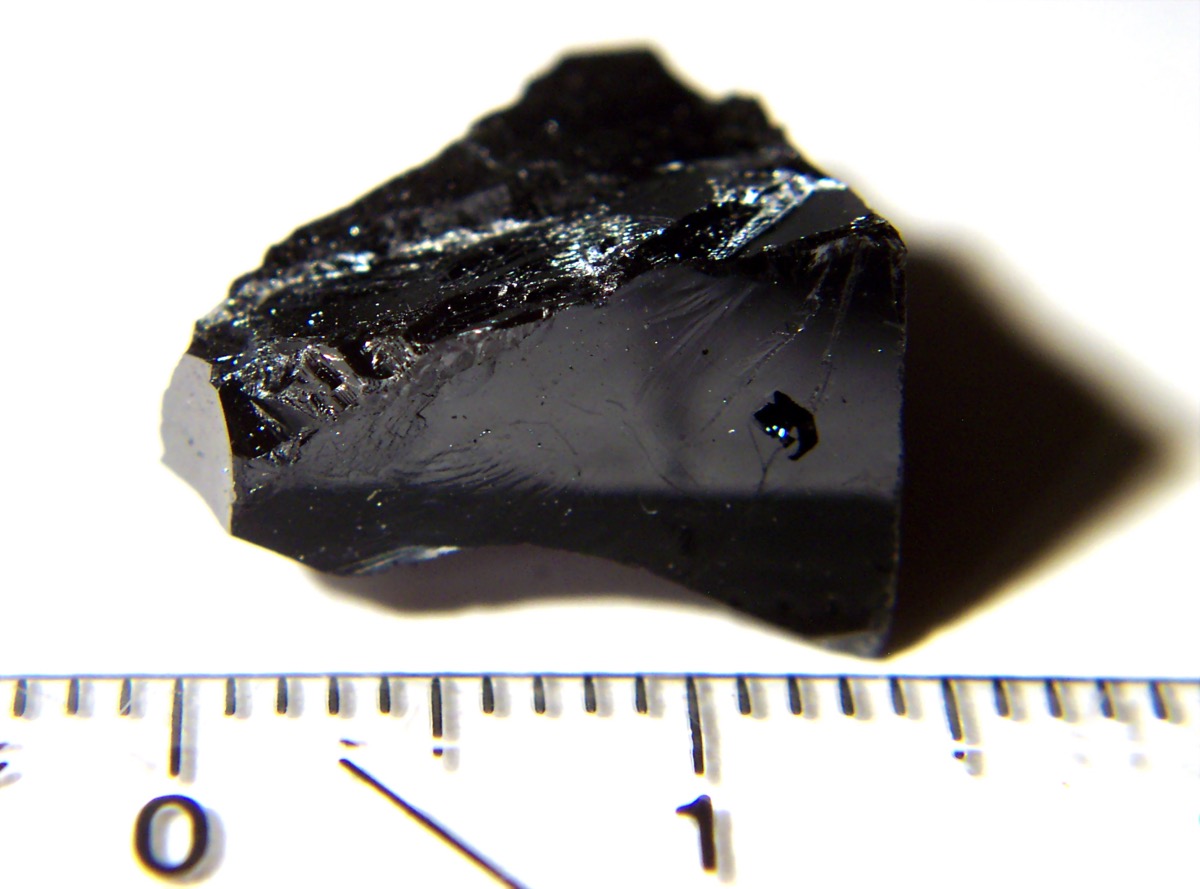

Synthesis & Purification

Proprietary ultra-high purification of II–VI semiconductor source materials. Stoichiometry control to ppm levels ensures crystal lattice perfection from the start.

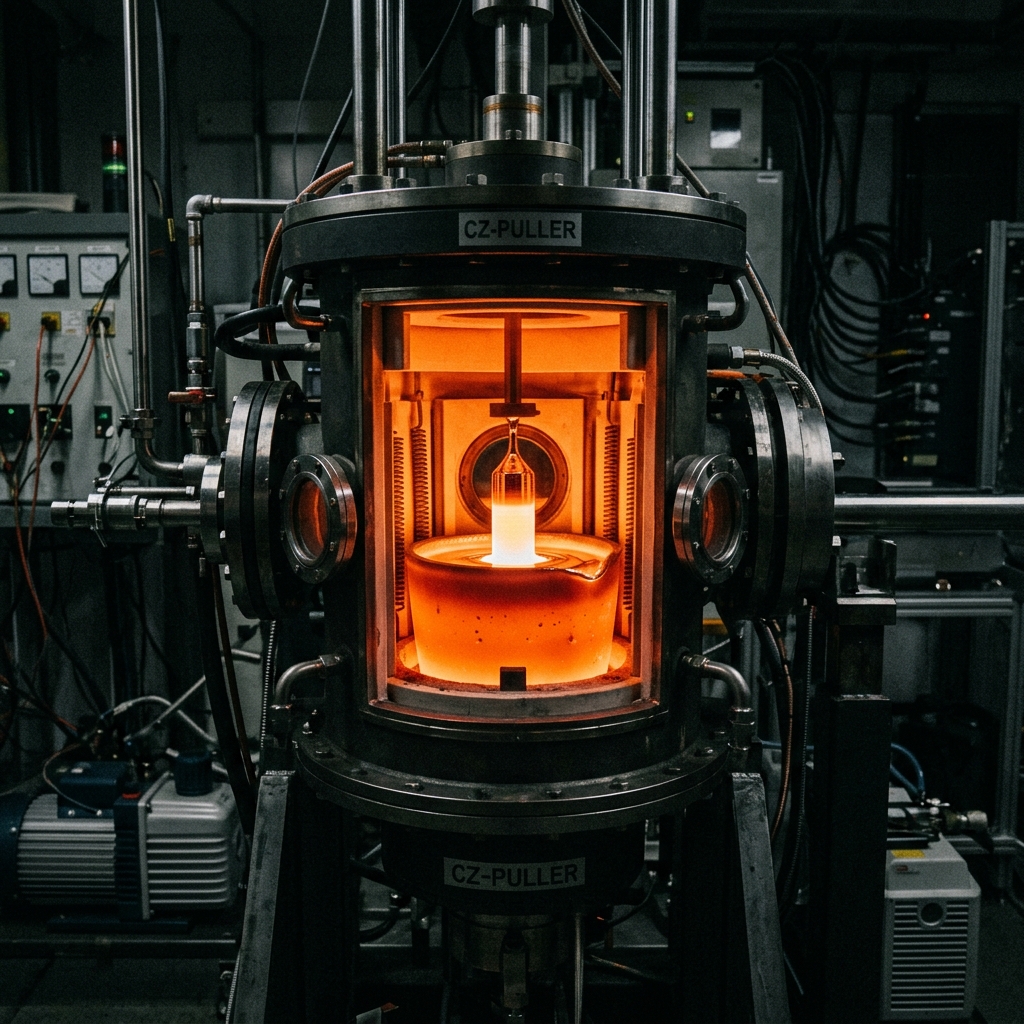

Czochralski crystal growth furnace
02 / 03

Single Crystal Growth

LTG Czochralski method with temperature gradients <1°C/cm. AI-controlled multi-zone furnace. Polyhedral growth front, atomically smooth surfaces.

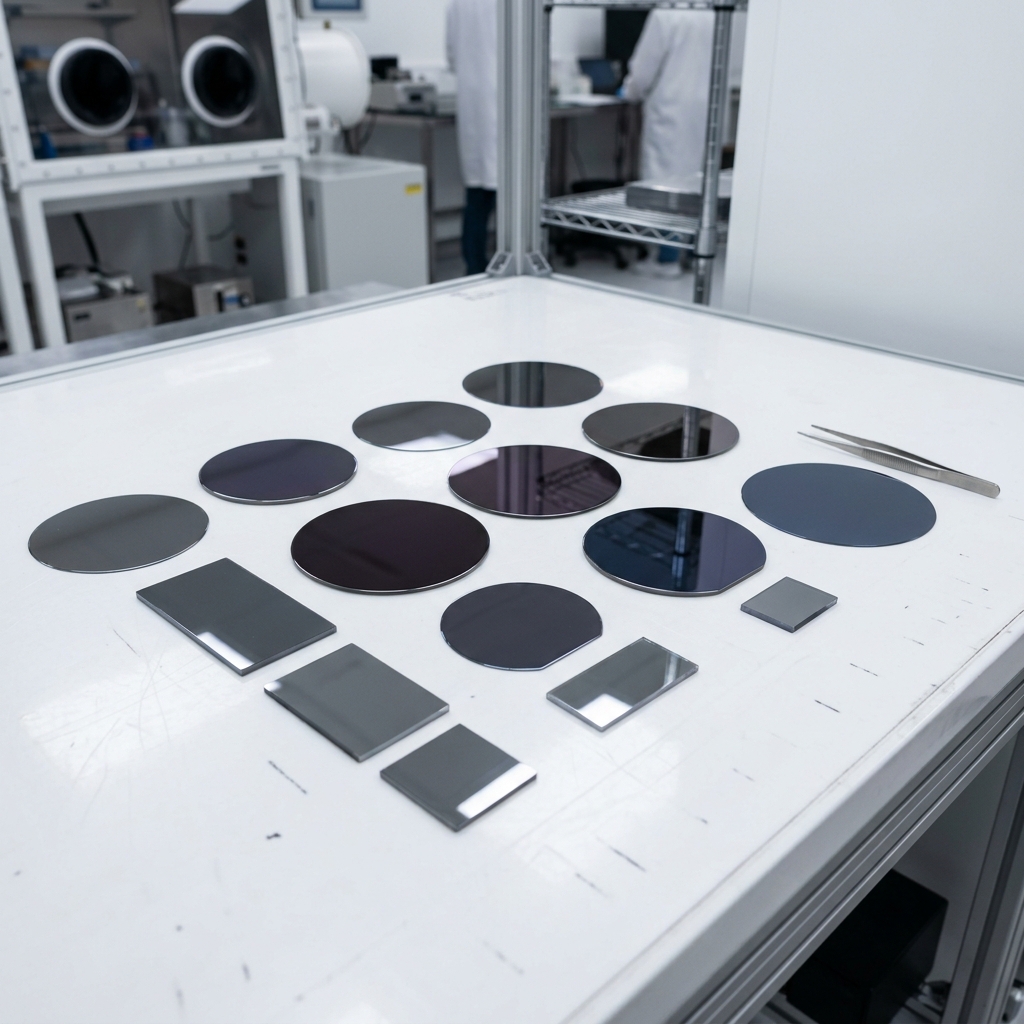

Precision-cut semiconductor crystal wafers
03 / 03

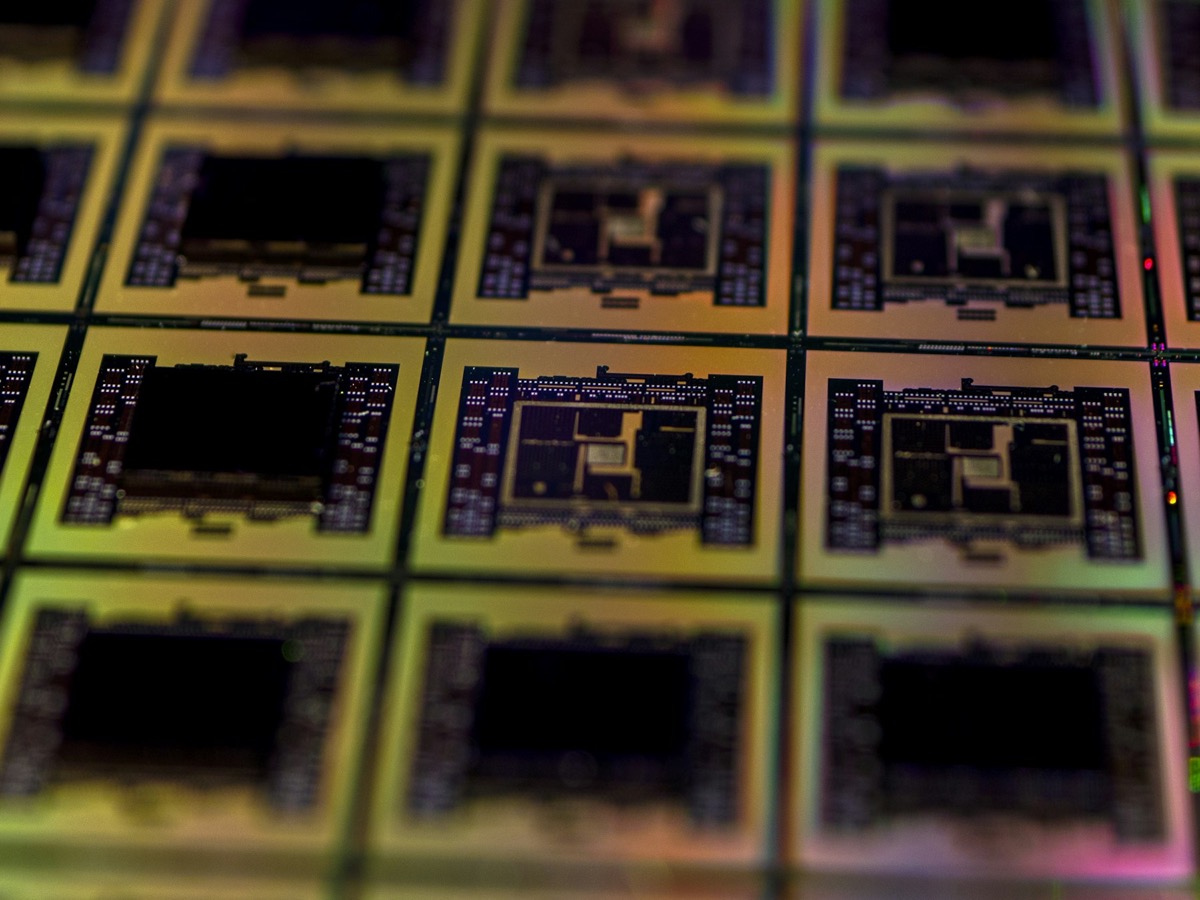

Precision Processing

Cutting, lapping, polishing and surface treatment to application-specific specifications. Delivery of wafers, substrates, or custom optical elements.

II–VI Compound Semiconductor Library

Six II–VI compound and optical crystal families grown on the LTG Czochralski platform, each tuned for a specific wavelength range or detector performance envelope.

CdTe

Cadmium Telluride

Primary workhorse for room-temperature X-ray and gamma-ray detectors. High atomic number delivers excellent radiation stopping power; our LTG process reaches 70 mm boule diameter.

Bandgap
1.44 eV
Diameter
up to 70 mm
Structure
Zinc-blende
Application
X-ray / γ-ray

Where Our Crystals Go to Work

Detector applications
X-Ray & Gamma Detectors

Medical imaging, nuclear security, industrial NDT

Infrared photonics
Infrared Lasers 6–12 μm

Mid-wave & long-wave infrared laser sources

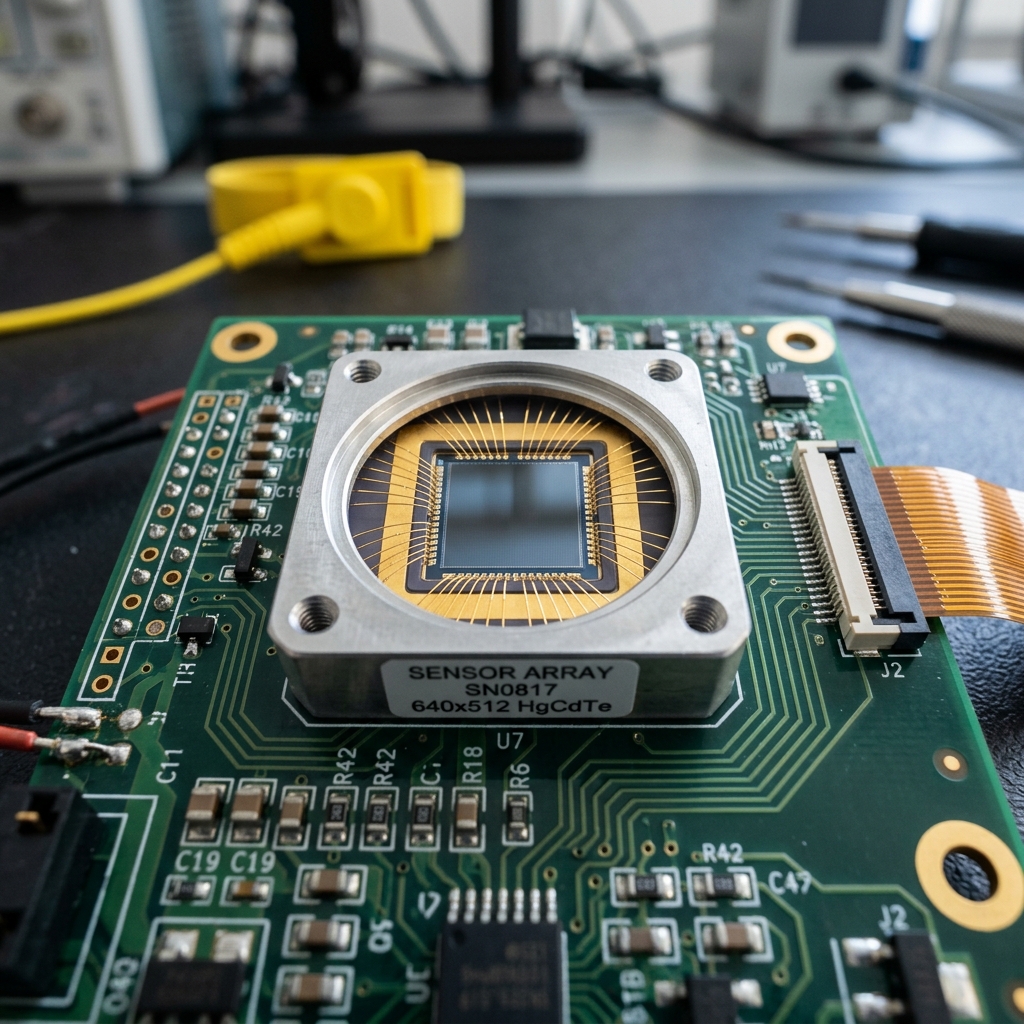

IR photodetector output
IR Photodetectors

Thermal sensing, environmental monitoring, defense

Quantum device materials
Quantum Technologies

Quantum computing, quantum communication networks

Bespoke Solutions, Not Commodity Supply

We are not a commodity crystal vendor. Every engagement starts by scoping the application in detail (composition, geometry, purity grade, characterisation) and is then run as a dedicated project with agreed deliverables and timelines.

Process

How We Work

An integrated pipeline. Synthesis, growth, and characterisation all happen under one roof, so we own every variable.

  1. 01
    Material synthesis
    High-purity starting compounds prepared in-house from elemental Cd, Zn, Te, Hg, Mn, Mg.
  2. 02
    Growth & characterisation
    LTG Czochralski growth paired with on-site XRD, IR transmission, and resistivity mapping.
  3. 03
    Purity & uniformity verification
    Every boule is graded, mapped and documented before wafering or shipping.
Advantage

Our Advantage

A control stack you cannot buy off the shelf. Two decades of practice, proprietary software, and reactors we designed ourselves.

  • 25+ yrs
    Hands-on growth experience
    Team has grown II–VI crystals continuously since the early 2000s.
  • AI
    Proprietary control software
    Self-learning thermal-profile and pull-rate control re-tunes per composition, no furnace rebuild required.
  • 01
    Bespoke growth reactors
    We build the furnaces we grow on. One platform, many compositions.
01

Crystal Supply

We supply custom-grown crystals against your specifications, wafers, boules, shaped detector elements, or optical blanks. Quantities from evaluation batches to programme-scale orders.

Can supply now
02

Qualification Batches

Small evaluation lots with full characterisation data, radioluminescence, energy resolution, optical transmittance, and structural analysis.

Starting point
03

Joint Development

For applications requiring novel compositions or geometries, we engage as a development partner. Shared IP arrangements available.

Open to partners
04

R&D Collaboration

We work with research institutes, universities, and government laboratories. Experience with EU Horizon-funded and bilateral programmes.

Academic & research

Every engagement starts with a conversation. Tell us your application, required crystal geometry, and performance targets, we will advise on material options, typical timescales, and what a qualification batch would involve.

Request Evaluation

Technology: LTG Czochralski Method

Our Low Thermal Gradient (LTG) Czochralski method grows large bulk crystals with polyhedral facets, low dislocation density, and stoichiometry preserved from melt to boule.

Traditional Czochralski

The industry standard, and its limitations

Open crucible pulling with high temperature gradients (10–100 °C/cm) creates fundamental defects that limit crystal quality and scalability.

Traditional Czochralski diagram
  • Round crystal shape with central macroinclusions
  • High dislocation density from thermoelastic stress
  • Only ~40% material yield, vaporization shifts stoichiometry
  • High energy and coolant consumption
  • Diameter scaling causes cracking, economically unviable at scale
LTG Czochralski · Our Method

Precision-engineered growth at near-zero gradient

Pulling in a specially designed crucible with multi-zone furnace. Temperature gradients <1 °C/cm. Layer-by-layer crystallographic growth mechanism.

LTG Czochralski method diagram
  • Polyhedral shape, no macroinclusions, atomically smooth faces
  • <100 dislocations/cm², an order of magnitude better
  • 98% material yield, stoichiometry fully preserved
  • 10× lower energy consumption, closed cooling system
  • AI self-learning reactor control, adaptable to new compositions up to 1300°C

Independently Verified Performance Results

We do not self-assess crystal quality. Independent research institutes characterise our materials and publish the results in peer-reviewed journals.

University of Tennessee, Knoxville
Scintillation Materials Research Center · Dept. of Nuclear Engineering
Published Research

Progress in Growth of Mixed (Zn₁₋ₓCdₓ)(W₁₋ₓMoₓ)O₄ Crystals for γ-Ray Detection

Large-size mixed zinc tungstate crystals (65 × 50 × 90 mm, 2.3 kg) grown by Crystals Growing SIA were independently characterised by the UT Knoxville Scintillation Materials Research Center.

Key Results: (Zn₀.₉Cd₀.₁)(W₀.₉Mo₀.₁)O₄
8.3%
Energy Resolution
at 662 keV
vs 10–12% typical CdWO₄ Lower = Better
Record value
9300
Photons / MeV
Absolute light yield
vs ~7800 industry reference Higher = Better
+19% above reference
2.3kg
Crystal boule
mass achieved
vs 0.8–1.2 kg typical lab scale Higher = Better
Production milestone
65mm
Boule width
large-format growth
vs 25–40 mm standard Higher = Better
70 mm in development
Our crystal CdWO₄ ref.
Energy resolution (662 keV)
8.3%8.9%
Absolute light yield
9 300 ph/MeV8 800 ph/MeV
Emission peak
486 nm500 nm

G. Centners, L. Dimitrocenko, K. Pestovich, L. Stand, C.L. Melcher & M. Zhuravleva · University of Tennessee, Knoxville

Academic Evaluation Partners

Our crystals are under active evaluation at multiple European and US research institutions. Results are being prepared for publication.

Ongoing

Industrial Pilot Customers

Crystals have been supplied to detector developers and imaging system integrators for device qualification. References available under NDA.

Active

EU-Funded Validation

Material development and characterisation validated through ERDF-funded project with the Investment and Development Agency of Latvia.

Completed

The People Behind the Crystals

Gleb Centners
Gleb Centners
Co-Founder & CEO

25+ years in manufacturing project management across Israel, Latvia, and Ukraine. Business and operational leadership.

Lika Levskaya
Lika Levskaya
COO

12 years in sales and management in the USA. Currently focused on deep-tech project development in Latvia.

Lauris Dimitrocenko
Lauris Dimitrocenko
Leading Scientist

Ph.D. Physics, University of Latvia. Solid-state physics, materials science. 14 years in industrial crystal growth and LTG technology.

Valdis Serzans
Valdis Serzans
Engineer

M.Sc. Engineering, Riga Technical University. 7 years in industrial crystal growth and LTG technology development.

Vitali Nagirnyi
Vitali Nagirnyi
Chief Scientist

Associate Professor in Solid State Physics at the Institute of Physics, Faculty of Science and Technology, University of Tartu, Estonia. Specialized in physics of scintillating crystals, with research focus on electronic structure and ultrafast energy relaxation processes in scintillators, including ternary tungstates, molybdates, phosphates, and hexafluorides.

A deep bench of crystal growth expertise, built over decades.

58+
Combined years
of crystal-growth practice
40+
Peer-reviewed
publications & patents
2016
Founded as a research
spin-out, Riga
6
II–VI compounds
taken to production

Scientific excellence

Peer-reviewed research across solid-state physics, materials science, and crystal growth. Actively published and cited in the field.

Entrepreneurial spirit

Built from a research spin-out through the Commercialization Reactor programme into a commercial supplier of II–VI crystals.

LTG Czochralski mastery

Unparalleled experience optimising the low-temperature gradient growth method for demanding II–VI compositions.

Proprietary control software

Custom AI reactor automation and thermodynamic modelling systems, all developed in-house.

Technology transfer

Multi-level crystal production methods moved from laboratory practice to industrial-scale growth.

Full chain under one roof

Synthesis, growth, characterisation, wafering, and QA owned by a single senior team.

Backed by EU funding, scaling with strategic partners.

We are backed by EU structural funding and are actively seeking strategic investors and industrial partners for the next phase of growth. Request our investor deck to learn more.

ERDF-backed R&D programme
EIT RawMaterials supported
Born in Commercialization Reactor
Open to strategic investment
Investor & Partner Path Request the deck
